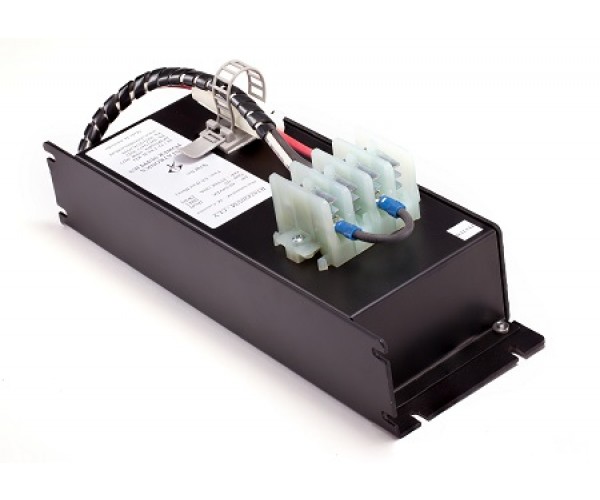

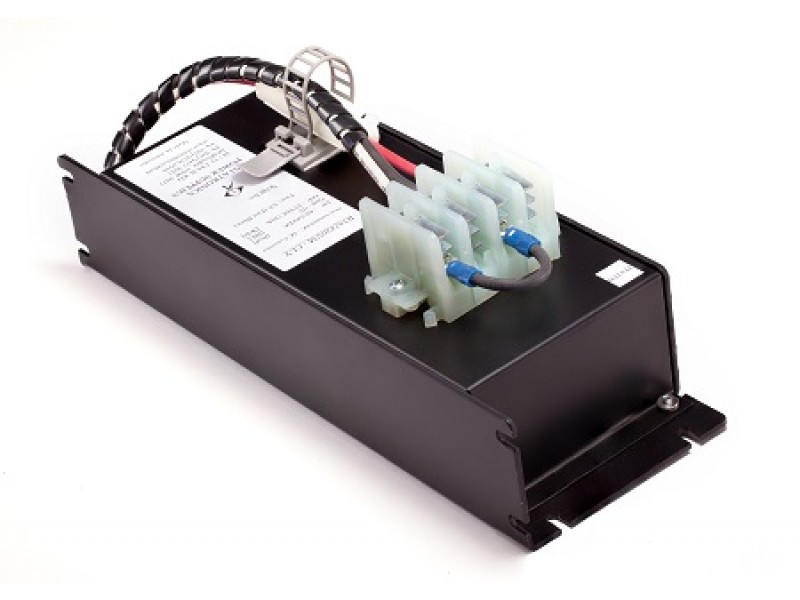

R74 Series 13.7V Non-Isolated DC-DC Converter-EMD-274W - Statronics Power

R74 Series 13.7V Non-Isolated DC-DC Converter-EMD-274W - Statronics Power

R74 Series 13.7V Non-Isolated DC-DC Converter-EMD-274W - Statronics Power

R74 Series 13.7V Non-Isolated DC-DC Converter-EMD-274W - Statronics Power

Product Code: R721320VM-EMD

Features

Input: 60-84Vdc
Output: 13.7Vdc
Overvoltage, reverse input & overload protected
Very low noise
No min load required
Efficiency greater than 90%
5 year warranty
Connector type: Din Rail terminals
Statronics Power DC to DC Converter Power Supply

Qty:

OR

SPECIFICATIONS

274W/13.7V Non-isolated DC to DC converter with Din Rail terminal - Statronics Power

Enclosure	Aluminium Black
Size (LxWxH) mm	244x85x45mm
Input	DC
Input Voltage Range	60-84Vdc
Output	DC
Output Voltage	13.7Vdc
Max Current	20.00A
Max Power	274W
Din Rail	N
Approvals	IEC, UL, AS, CSA, FCC, VDE, CISPR 22
