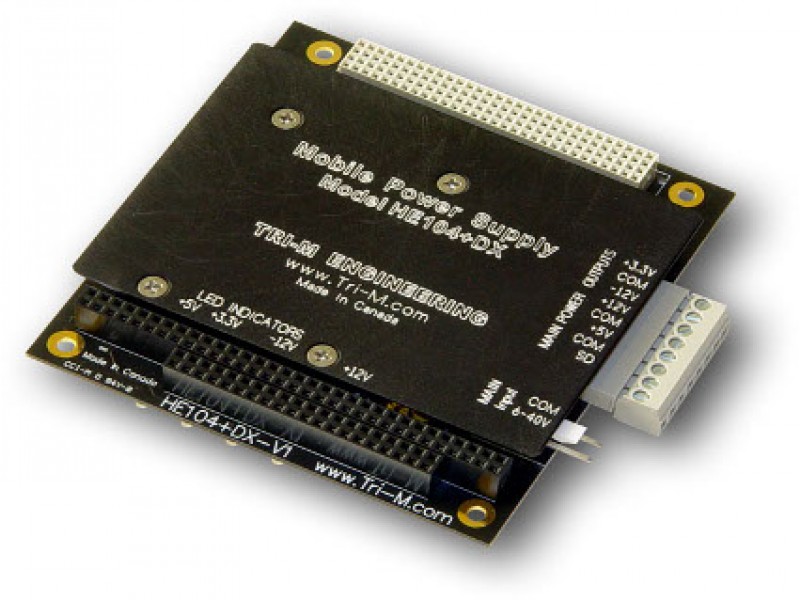

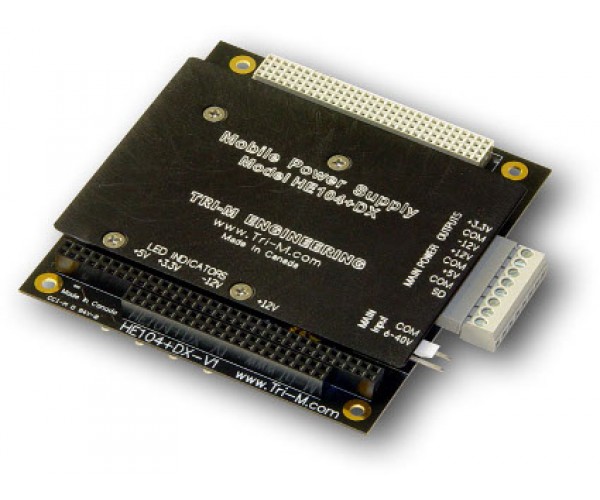

PC-104 Quad Output Module - 108W
PC-104 Quad Output Module - 108W
Product Code: HE104+DX
Features
- Input 6-40Vdc
- Output: 3.3;5;12;-12Vdc
- High efficiency up to 90%
- PC-104+ (PC-104 & PCI-104)
- Extended temperature: -40C to +85C
- RoHS compliant
- SPECIFICATIONS
-
108W/5,12,3.3,-12V High Efficiency PC-104+ Power Supply
Enclosure Open-frame Size (LxWxH) mm 95x90x14mm Input DC Input Voltage Range 6-40Vdc Output DC Output Voltage 5,12,3.3,-12Vdc Max Current 15.00,3.00,10.00,-0.50A Max Power 108W Din Rail N Approvals No - TECH SPECS
