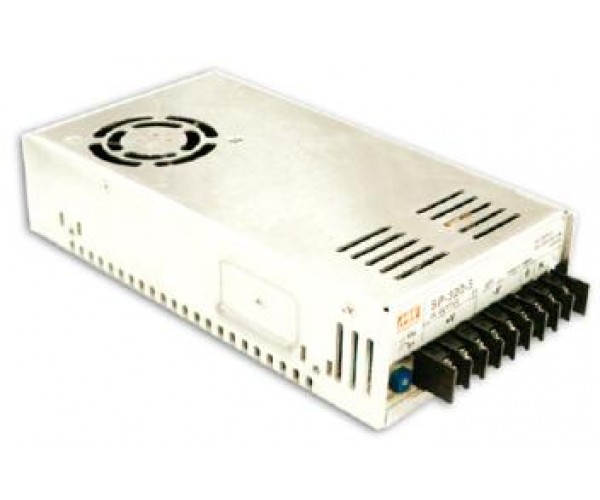

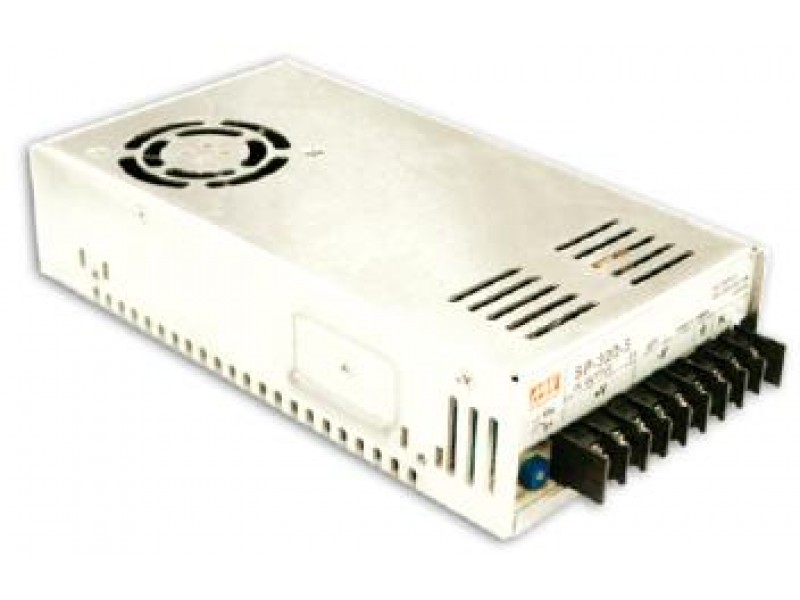

Mean Well SP Series AC to DC Single 24V Output-312W

Mean Well SP Series AC to DC Single 24V Output-312W

Mean Well SP Series AC to DC Single 24V Output-312W

Mean Well SP Series AC to DC Single 24V Output-312W

Product Code: SP-320-24

Features

Input voltage: 88-264Vac OR 124-370Vdc
Output: 24Vdc
Enclosed, with Screw terminals
No minimum load required
Short circuit, over voltage, over-temperature & overload protection
3 year warranty
Mean Well AC to DC Switching Power Supply

Qty:

OR

SPECIFICATIONS

312W/24V Isolated AC to DC Switching Single output Enclosed Converter - Mean Well

Enclosure	White
Size (LxWxH) mm	215x115x50mm
Input	AC
Input Voltage Range	88-264Vac
Output	DC
Output Voltage	24Vdc
Max Current	13.00A
Max Power	312W
Din Rail	N
Approvals	UL, CB, CE, CISPR22, CCC, TUV
