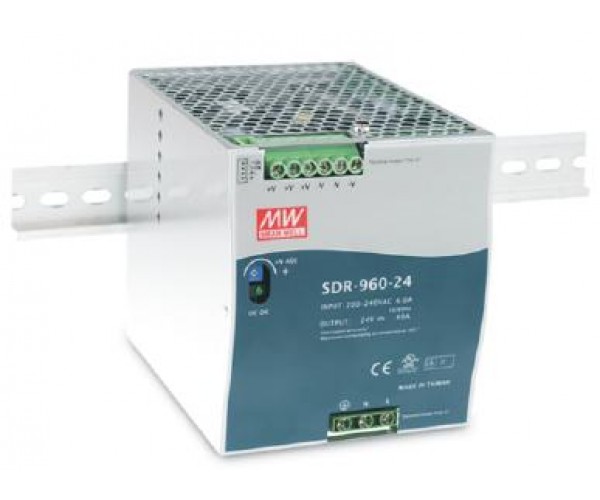

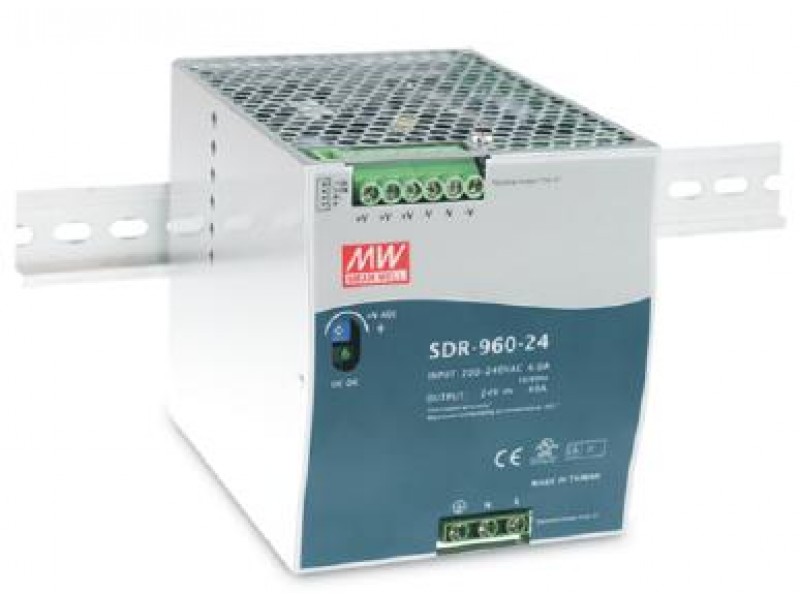

Mean Well SDR Series AC to DC Single 24V Output-960W

Mean Well SDR Series AC to DC Single 24V Output-960W

Mean Well SDR Series AC to DC Single 24V Output-960W

Mean Well SDR Series AC to DC Single 24V Output-960W

Product Code: SDR-960-24

Features

Mean Well AC to DC Switching Power Supply
Input voltage: 180-264Vac OR 254-370Vdc
Output: 24Vdc
DIN Rail Mounting
No minimum load required
Short circuit, over voltage, overload & over temperature protection
3 year warranty
Mean Well AC to DC Switching Power Supply

Qty:

OR

SPECIFICATIONS

960W/24V Isolated AC to DC Switching Single output DIN rail Converter - Mean Well

Enclosure	Silver
Size (LxWxH) mm	150x125.2x110mm
Input	AC
Input Voltage Range	180-264Vac
Output	DC
Output Voltage	24Vdc
Max Current	40.00A
Max Power	960W
Din Rail	Y
Approvals	UL, CB, CE
