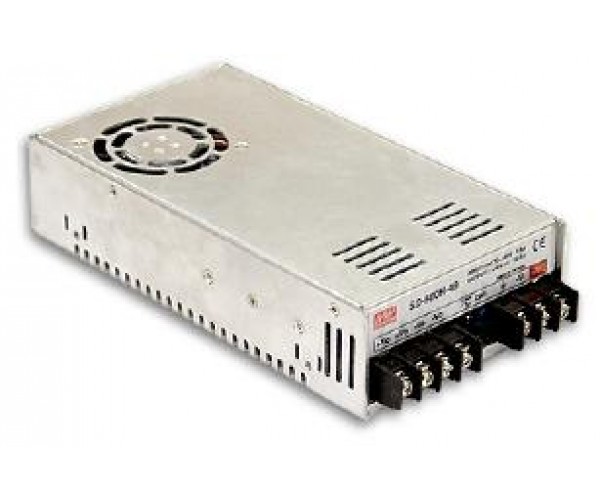

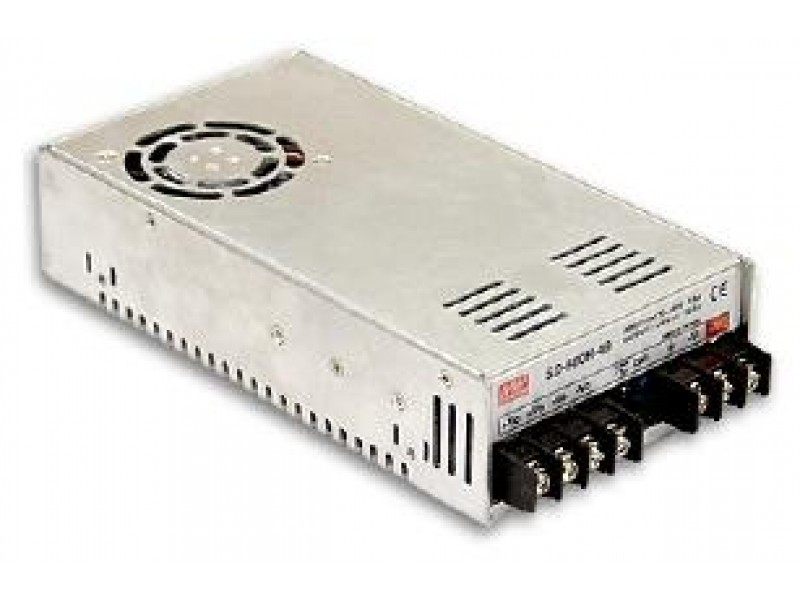

Meanwell SD Series Single 24V Output Converter-500W

Meanwell SD Series Single 24V Output Converter-500W

Product Code: SD-500H-24
Features
  • Input: 72-144Vdc
  • Output: 24Vdc
  • Robust with very high MTBF
  • Short circuit, over-voltage, over-temperature & overload protection
  • Enclosure packaging
  • Operating range -20 to 60oC
  • 3 year warranty
$343.20
View Volume Discounts
Cases Discount Rate
10+(11 to 20) 5%
20+(21 to 50) 7.5%
50+(51 to 100) 10%
100+(101 to 200) 12.5%
200+(> 201) 15%
OR
SPECIFICATIONS
500W/24V Isolated DC to DC converter
Enclosure White
Size (LxWxH) mm 215x115x50mm
Input DC
Input Voltage Range 19-72Vdc
Output DC
Output Voltage 24Vdc
Max Current 21.00A
Max Power 500W
Din Rail N
Approvals CB, CE, CISPR22
TECH SPECS
