Mean Well RS Series AC to DC Single 24V Output-100W

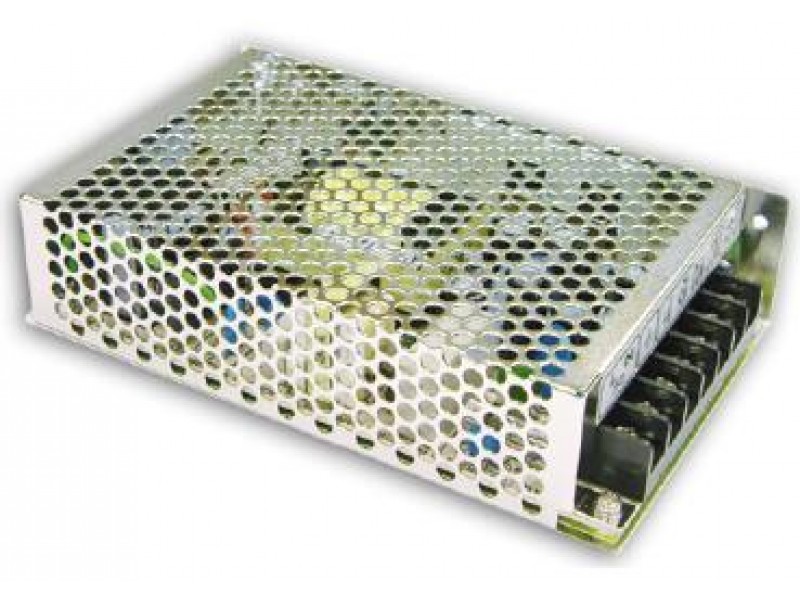

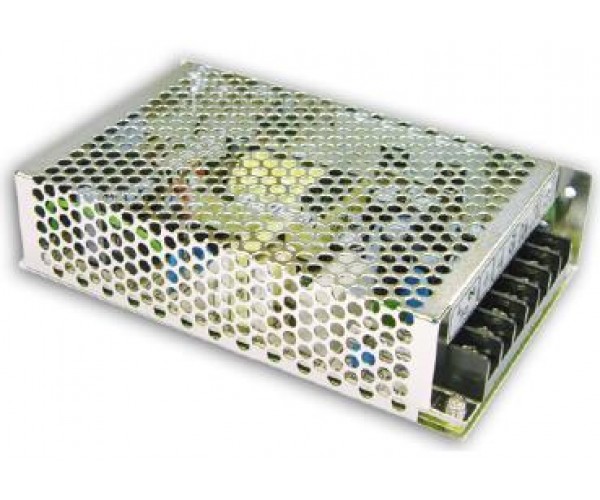

Mean Well RS Series AC to DC Single 24V Output-100W

Mean Well RS Series AC to DC Single 24V Output-100W

Mean Well RS Series AC to DC Single 24V Output-100W

Product Code: RS-100-24

Features

Input voltage: 88-264Vac OR 125-373Vdc
Output: 24Vdc
Enclosed, with Screw terminals
No minimum load required
Short circuit, over voltage & overload protection
3 year warranty
Mean Well AC to DC Switching Power Supply

Qty:

OR

SPECIFICATIONS

100W/24V Isolated AC to DC Switching Single output Enclosed Converter - Mean Well

Enclosure	Silver
Size (LxWxH) mm	159x97x38mm
Input	AC
Input Voltage Range	88-264Vac
Output	DC
Output Voltage	24Vdc
Max Current	4.50A
Max Power	100W
Din Rail	N
Approvals	UL, CB, CE, CISPR22, TUV

TECH SPECS
