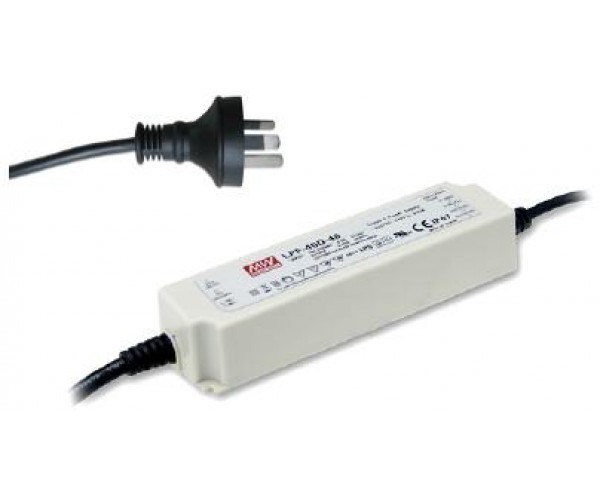

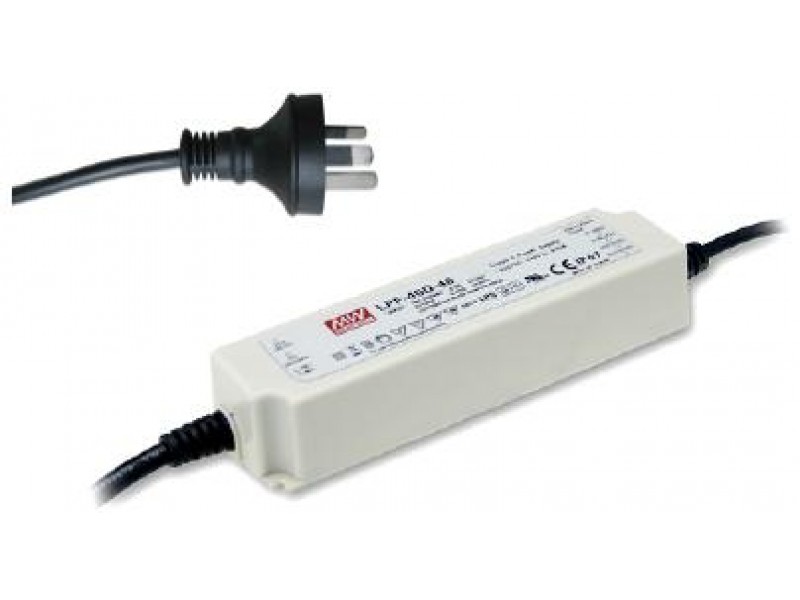

Mean Well LPF Series AC to DC Single 12V LED Driver-40W

Mean Well LPF Series AC to DC Single 12V LED Driver-40W

Mean Well LPF Series AC to DC Single 12V LED Driver-40W

Mean Well LPF Series AC to DC Single 12V LED Driver-40W

Product Code: LPF-40D-12

Features

Input: 90-305Vac OR 127-431Vdc
Output: 12Vdc/40W
For LED lighting or moving sign applications
Dimming function
IP67
Short circuit, over temperature & over power protected
Class 2 power unit
5 year warranty
Mean Well LED Driver Power Supply

Qty:

OR

SPECIFICATIONS

40W/12V Isolated AC to DC LED Driver Power Supply - Mean Well

Enclosure	White
Size (LxWxH) mm	162.5x43x32mm
Input	AC
Input Voltage Range	90-305Vac
Output	DC
Output Voltage	12Vdc
Max Current	3.34A
Max Power	40W
Din Rail	N
Approvals	UL, CSA, CB, CE

TECH SPECS

LPF-40D-SPEC.pdf
