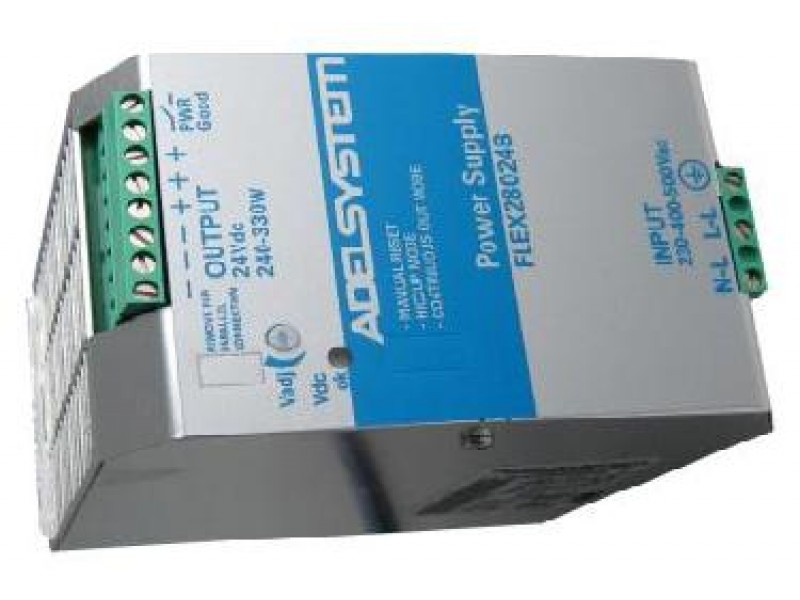

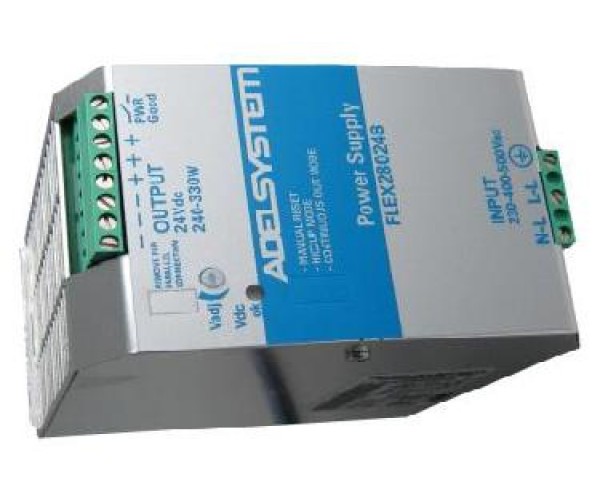

  • FLEX Series 1 or 2-Phase 24V/14A SMPS-336W- ADEL System

FLEX Series 1 or 2-Phase 24V/14A SMPS-336W- ADEL System

FLEX Series 1 or 2-Phase 24V/14A SMPS-336W- ADEL System

FLEX Series 1 or 2-Phase 24V/14A SMPS-336W- ADEL System

Product Code: FLEX28024B
Features
  • Input: 1 or 2-phase: 230 - 400 - 500Vac
  • Output: 24Vdc
  • Efficiency: > 89%
  • Output Power from 240 -336W
  • Power Good Relay
  • Three modes of output protections: 1) Hiccup mode 2) Continuous Out Mode 3) Manual Reset
  • DIN Rail Mountable
  • 3 Year warranty
  • ADEL System AC to DC Switching Power Supply
OR
SPECIFICATIONS
336W/24V FLEX Series Single output Isolated AC to DC Switching Converter - ADEL System
Enclosure Aluminium Silver
Size (LxWxH) mm 115x72x135mm
Input AC
Input Voltage Range 230-500Vac
Output DC
Output Voltage 24Vdc
Max Current 14.00A
Max Power 336W
Din Rail Y
Approvals Electrical safety, EMC, IEC
TECH SPECS

FLEX28024B.pdf
