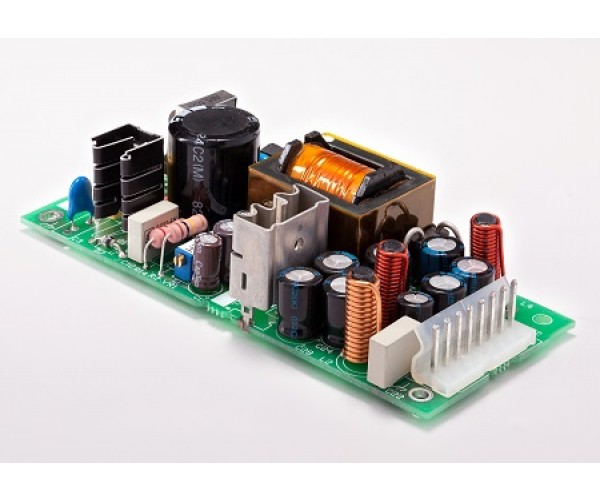

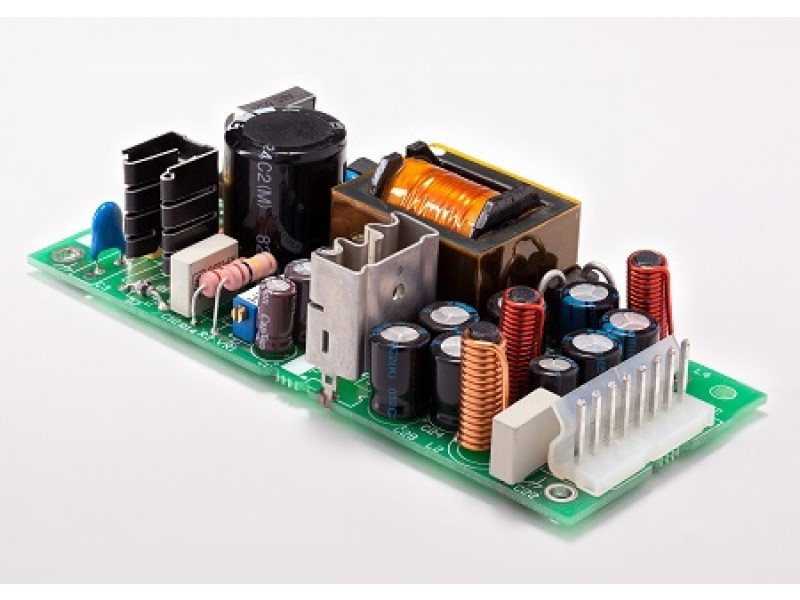

X25 Series Wide Input 15,15V DC to DC Converter-Screw terminal-25W - Statronics Power

X25 Series Wide Input 15,15V DC to DC Converter-Screw terminal-25W - Statronics Power

X25 Series Wide Input 15,15V DC to DC Converter-Screw terminal-25W - Statronics Power

X25 Series Wide Input 15,15V DC to DC Converter-Screw terminal-25W - Statronics Power

Product Code: DX25D15S

Features

Input: 64-150Vdc
Output: 15,15V
PCB mounting
Short circuit protected
Overpower protected
No minimum load required
5 year warranty
With Screw terminals
Statronics Power DC to DC Converter Power Supply

Qty:

OR

SPECIFICATIONS

20W/15,15V Isolated DC to DC converter with Screw terminals - Statronics Power

Enclosure	No
Size (LxWxH) mm	126x55x30mm
Input	DC
Input Voltage Range	64-150Vdc
Output	DC
Output Voltage	15,15Vdc
Max Current	0.60,0.60A
Max Power	20W
Din Rail	N
Approvals	IEC, UL, AS, CSA, FCC, VDE, CISPR 22

TECH SPECS

X25T Series.pdf
