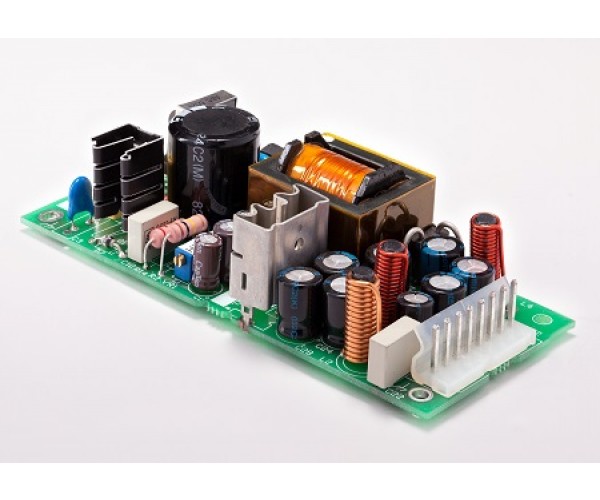

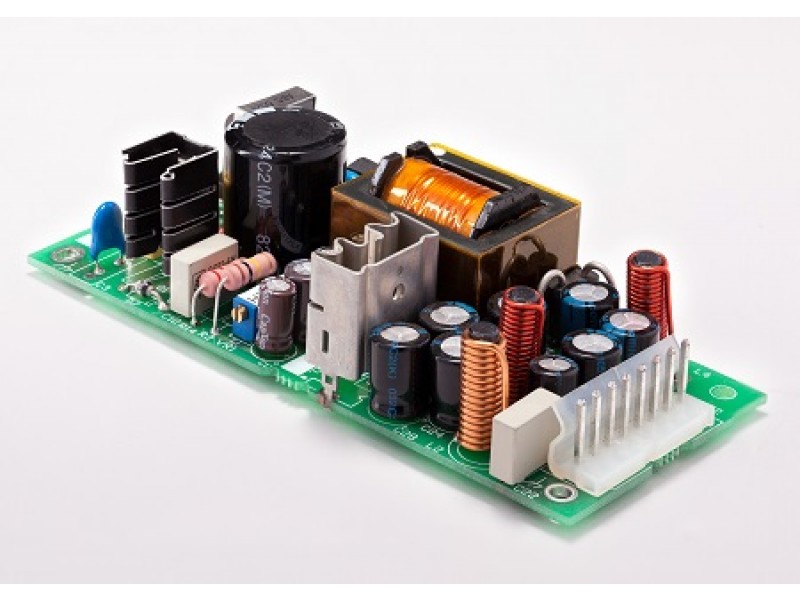

X25 Series AC to DC Switching 5-15-15V Triple Output-with Molex connector-25W - Statronics Power

X25 Series AC to DC Switching 5-15-15V Triple Output-with Molex connector-25W - Statronics Power

X25 Series AC to DC Switching 5-15-15V Triple Output-with Molex connector-25W - Statronics Power

X25 Series AC to DC Switching 5-15-15V Triple Output-with Molex connector-25W - Statronics Power

Product Code: X25T1515H

Features

Input: 90-280Vac OR 100-390Vdc
Output: 5,15,15V
PCB mounting
Short circuit protected
Overpower protected
No minimum load required
5 year warranty
With Molex connectors
Statronics Power AC to DC (Switching) Power Supply

Qty:

OR

SPECIFICATIONS

25W/5,15,15V Isolated AC to DC switching converter with Molex terminals - Statronics Power

Enclosure	No
Size (LxWxH) mm	126x55x30mm
Input	AC
Input Voltage Range	90-264Vac
Output	DC
Output Voltage	5,15,15Vdc
Max Current	3.00A,0.40,0.40A
Max Power	25W
Din Rail	N
Approvals	IEC, UL, AS, CSA, FCC, VDE, CISPR 22

TECH SPECS

X25T Series.pdf
