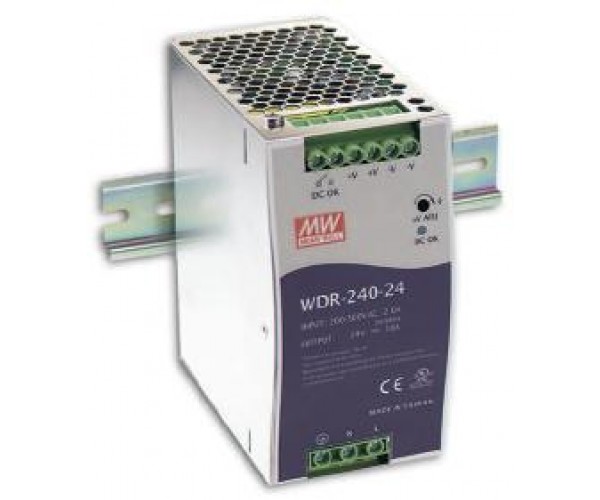

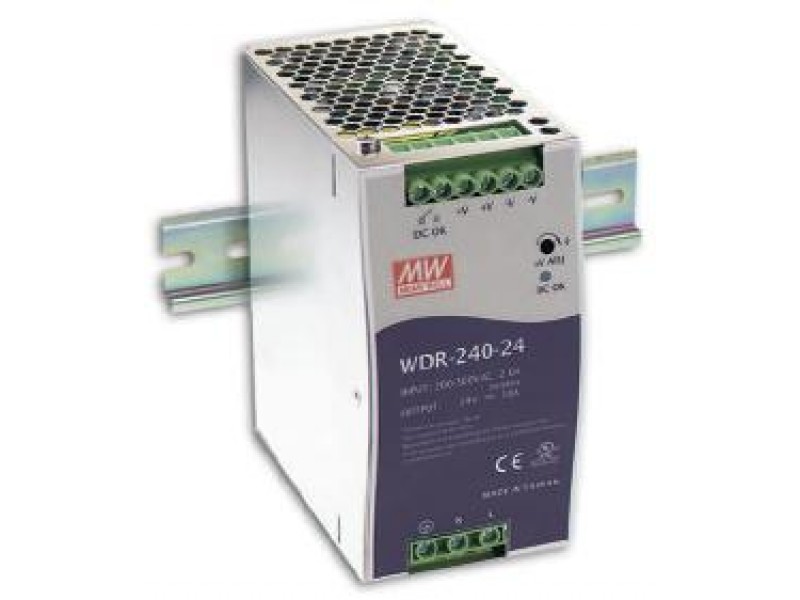

Mean Well WDR Series AC (1 or 2 Phase) to DC Single 48V Output-240W

Mean Well WDR Series AC (1 or 2 Phase) to DC Single 48V Output-240W

Mean Well WDR Series AC (1 or 2 Phase) to DC Single 48V Output-240W

Mean Well WDR Series AC (1 or 2 Phase) to DC Single 48V Output-240W

Product Code: WDR-240-48

Features

Input voltage: 180-550Vac OR 254-780Vdc
Output: 48Vdc
DIN Rail Mounting
No minimum load required
Short circuit, over voltage, overload & over temperature protection
3 year warranty
Mean Well AC to DC Switching Power Supply

Qty:

OR

SPECIFICATIONS

240W/48V Isolated 1 or 2 Phase AC to DC Switching Single output DIN rail Converter - Mean Well

Enclosure	Silver
Size (LxWxH) mm	125.2x113.5x63mm
Input	AC
Input Voltage Range	180-550Vac
Output	DC
Output Voltage	48Vdc
Max Current	5.00A
Max Power	240W
Din Rail	Y
Approvals	UL, CB, CE
