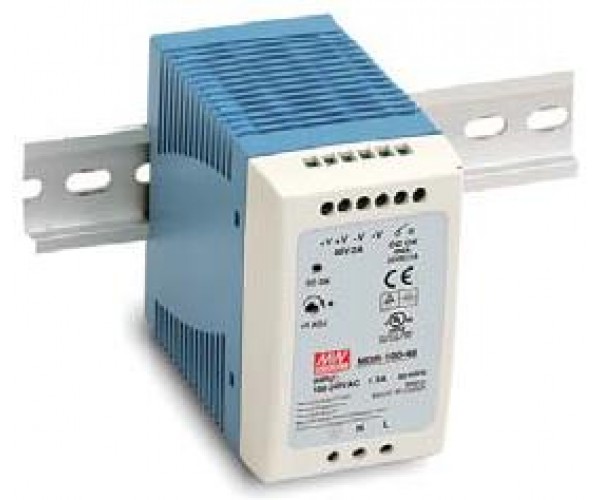

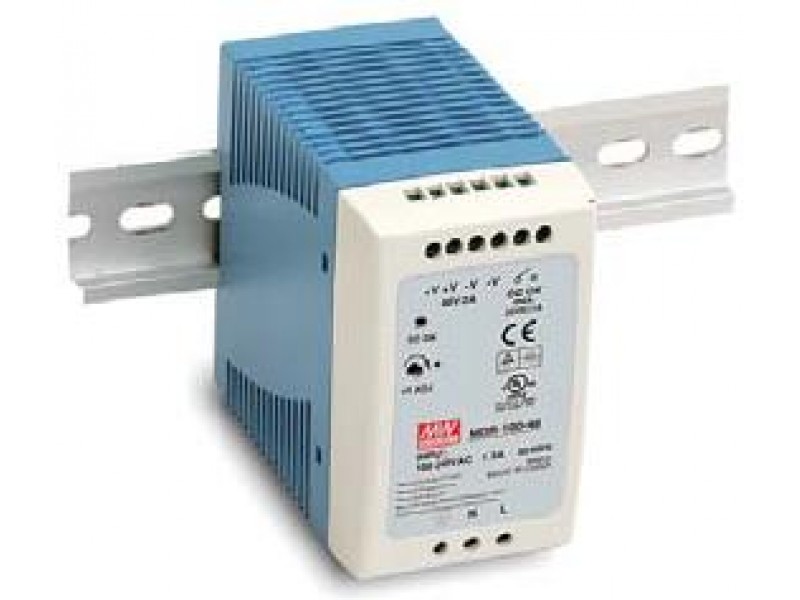

Mean Well MDR Series AC to DC Single 24V Output-96W

Mean Well MDR Series AC to DC Single 24V Output-96W

Mean Well MDR Series AC to DC Single 24V Output-96W

Mean Well MDR Series AC to DC Single 24V Output-96W

Product Code: MDR-100-24

Features

Input voltage: 85-264Vac OR 120-370Vdc
Output: 24Vdc
DIN Rail Mounting
No minimum load required
Short circuit, over voltage & overload protection
3 year warranty
Mean Well AC to DC Switching Power Supply

Qty:

OR

SPECIFICATIONS

96W/24V Isolated AC to DC Switching Single output Converter - Mean Well

Enclosure	Blue
Size (LxWxH) mm	100x90x50mm
Input	AC
Input Voltage Range	85-264Vac
Output	DC
Output Voltage	24Vdc
Max Current	4.00A
Max Power	96W
Din Rail	Y
Approvals	UL, CE
