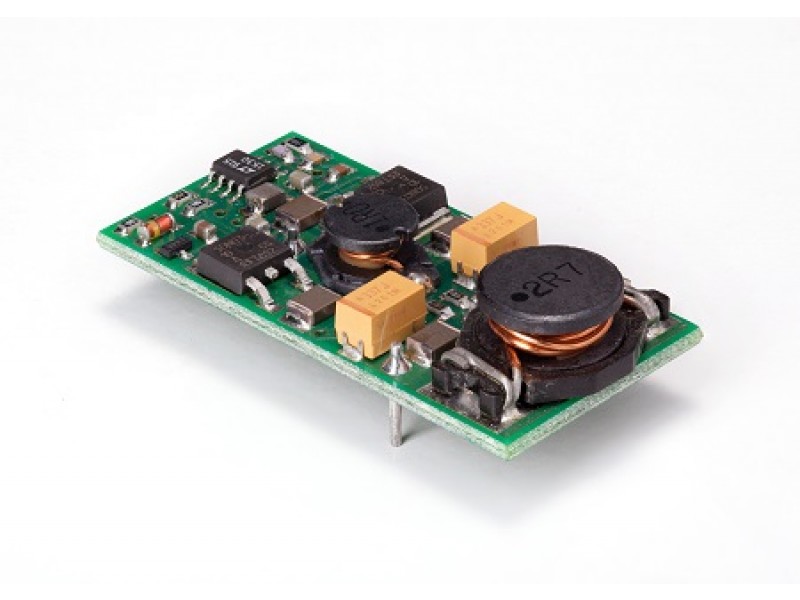

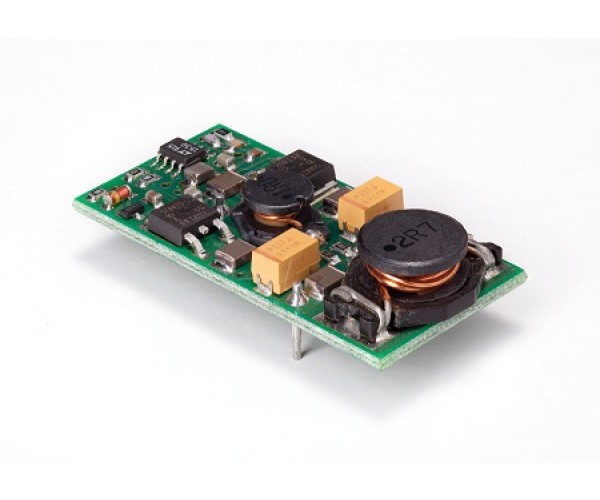

8A Non-Isolated Adjustable DC-DC Converter-25W - Statronics Power

8A Non-Isolated Adjustable DC-DC Converter-25W - Statronics Power

Product Code: R050308
Features
  • Input: 4.5-7.5Vdc
  • Output: 3.3Vdc
  • PCB Mounting
  • Small size for mounting on PCB
  • Over current protected
  • Short Circuit protected
  • Efficiency greater than 90%
  • No external components needed
  • 5 year warranty
  • Statronics Power DC to DC Converter Power Supply
$75.00
View Volume Discounts
Cases Discount Rate
10+(11 to 20) 5%
20+(21 to 50) 7.5%
50+(51 to 100) 10%
100+(101 to 200) 12.5%
200+(> 201) 15%
OR
SPECIFICATIONS
25W/3.3V Adjustable DC to DC converter - Statronics Power
Enclosure Open-frame
Size (LxWxH) mm 51x25x10mm
Input DC
Input Voltage Range 4.5-7.4Vdc
Output DC
Output Voltage 3.3Vdc
Max Current 8.00A
Max Power 25W
Din Rail N
Approvals IEC, UL, AS, CSA, FCC, VDE, CISPR 22
